Product Information

Overview

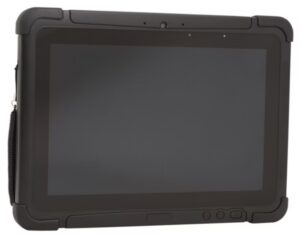

The Honeywell RT10 bright, high-resolution screen, perfect balance of ruggedness and lightweight design, and integrated barcode scanning, the Honeywell RT10A improves worker productivity while maintaining a low total cost of ownership.

Specifications

Physical Characteristics

MECHANICAL

Dimensions (W x L x H): 271.9 mm x 198.3
mm x 19.5 mm (10.7 in x 7.81 in x 0.77 in)
Weight:
1.2 kg (2.65 lbs) with standard battery
1.4 kg (3.1 lbs) with extended battery

ENVIRONMENTAL

Operating Temperature:
AC Power: -20°C to 40°C (-4°F to 104°F)
Battery Power: -10°C to 50°C
(14°F to 122°F)
Storage Temperature: -30°C to 70°C
(-22°F to 158°F)
Humidity: 10% to 90% RH, non-condensing
Transit Drop: 1.2 m (4 ft), MIL-STD-810G,
Method 516.6, Procedure IV
Crash Shock: MIL-STD-810G, Method
516.6, Procedure V
Vibration: MIL-STD-810G, Method 514.6,
Procedure I
Environmental Sealing: IP65
ESD +/-8 kV direct; +/-12 kV air

SECURITY

TPM v2.0
Kensington Lock slot

SYSTEM ARCHITECTURE

Processor: Intel® Pentium® N4200 Apollo
Lake Processor 1.10 GHz, up to 2.50 GHz
with turbo boost technology
Operating System: Windows® 10
Enterprise LTSC
Memory: 8 GB RAM, 128 GB Storage
Display:
10.1-inch, 800 NIT brightness,
1920 x 1200 resolution
Optically bonded
Audio:
Integrated microphone with noise
cancellation
Dual 1W speakers
I/O Ports:
1x Micro HDMI
1x USB 3.0 (Type A)
1x USB 3.0 (Type C)
1x 3.5mm Audio Combo Connector (Mic
in or line out)
1x DC jack
1x Micro SDXC slot
Keys:
1x Power
1x Home
2x Programmable function keys
Volume control
Camera:
Rear: 8 MP autofocus with flash
Front: 2 MP
Sensors: Ambient light sensor,
accelerometer, gyroscope
Battery:
Standard: 5,900 mAh, 12 hours
Extended: 10,280 mAh, 18 hours
Bridge battery for hot-swapping
capability
Scanning Capabilities:
Honeywell N6703 Standard Range
1D/2D Imager
Honeywell FlexRange 1D/2D Imager

WIRELESS CONNECTIVITY

WWAN Radio 4G LTE (ATT/VZW/NA/EU)
LTE Advanced Support Up to 300 Mbps
CAT6 LTE downlink
Up to 50 Mbps CAT5 LTE uplink
LTE (FDD): Bands B1, B2, B3, B4, B5, B7,
B8, B12, B13, B20, B25, B26, B29, B30I
LTE (TDD): Bands 41
HSPA+, UMTSB1, B2, B3, B4, B5, B8
WLAN: IEEE 802.11 a/b/g/n/ac;
Wi-Fi certified, 2*2 MIMO
Wi-Fi Alliance certifications: 802.11a/b/
g/n/ac, WPA/2 Personal and Enterprise,
WPS2, 802.11s, WMM, WMM-PS, WFD,
Miracast, Passpoint R2, Voice Personal
Additional WLAN Features: 802.11 d/e/
h/i/r/k/w/v
Bluetooth 5.0
Bluetooth Profiles: HFP, A2DP, AVRCP,
OPP, SPP, GATT
GPS: u-Blox Neo-6Q

*Specifications are subject to change without notice
