Product Information

Overview

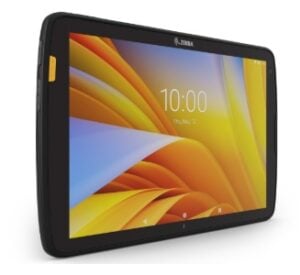

The Wi-Fi 6 enabled Zebra ET40 is an ideal upgrade from consumer tablets for indoor use. It is retail-ready with fixed and mobile payment solution options.

Specifications

Physical Characteristics

Dimensions

8 inch: 8.42 in. L x 5.32 in. H x 0.45 in. D
213.9 mm L x 134.8 mm H x 11.4 mm D
10 inch: 10.15 in. L x 6.41 in. H x 0.45 in. D
257.9 mm L x 162.9 mm H x 11.4 mm D

Weight
8 inch: 1.07 lbs/485 g
10 inch: 1.52 lbs/690 g

Display
8 inch/20.3 cm: 600 nits, color WXGA 1280×800
10.1 inch/25.7 cm: 500 nits, color WUXGA
1920×1200; Corning™ Gorilla™ Glass

Imager Window Corning Gorilla Glass
Touch Panel Capacitive multi-touch
Expansion Slot Integrated connector to easily add accessories
Connectivity
Docking connector (charge and data)
USB-C side port (tablet charging and data only)

SIM Slots 1 nano SIM
Interface Ports Expansion connector for Zebra accessories
Notifications Audible tone; multi-color LEDs; vibration
Keyboard Options Virtual, Bluetooth, USB
Audio Stereo speakers; two microphones; audio headset support via USB-C port or Bluetooth
Buttons
Volume up/down; power on/off; barcode scanner;
programmable buttons

Performance Characteristics

CPU
Qualcomm SnapdragonTM SM6375
Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6)

Operating System Android; for supported Android versions, visit:
www.zebra.com/android-versions
Memory
Standard: 4 GB LPDDR4X SDRAM/64 GB UFS Flash
Premium: 8 GB RAM/128 GB

General Certifications

EPEAT Bronze, Energy Star
RTCA/DO-160G, Section 4, Category A1
User Environment

Operating Temp. -4F to +122F/-20C to +50C
Storage Temp. -40F to +158F/-40C to +70C
Humidity 5% to 95% non-condensing
Drop Specifications Per MIL-STD-810H
4 ft (1.2m) to concrete across temperature (-4F to +122F/-20C to +50C)
5.1 ft (1.55m) to concrete with optional rugged frame across temperature (-4F to +122F/-20C to +50C)
Sealing IP65
Vibration
Sine: 4 g’s PK(5 Hz to 2 kHz)
Random: 6 g RMS (20 Hz to 2 kHz)
60 minute duration per axis, 3 axis

Electrostatic
Discharge (ESD)

+/- 15 kV air discharge; +/- 8 kV contact; +/- 8 kV indirect
Power

Battery User Profile Ample power for a full shift; continuous operation is enabled with the secondary optional battery
Battery
8 inch: 6100 mAh 3.87 V rechargeable Li-Ion Polymer; user replaceable (23.61 Wh)

10 inch: 7600 mAh 3.87 V rechargeable Li-Ion Polymer; user replaceable (29.41 Wh)

Optional hot swappable 3400 mAh 7.6 V (25.84 Wh) secondary battery, for use with expansion back accessory

Interactive Sensor Technology (IST)

Ambient Light Sensor Automatically adjusts display brightness and display backlight
Magnetometer eCompass automatically detects direction and orientation
Motion Sensor 3-axis gyroscope; 3-axis accelerometer
Data Capture

Scanning SE4100 1D/2D Scan Engine; SE4710 1D/2D Scan Engine; SE55 1D/2D Advanced Range Scan Engine with IntelliFocus technology (Premium)
Rear Camera Image capture: 13 MP auto-focus camera with user controllable LED flash
Front Camera 5 MP

Wireless Communications

Wi-Fi (WLAN)
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
2×2 MU-MIMO; Wi-Fi™ certified; IPv4, IPv6 (Wi-Fi 6)

Cellular (ET45 Only) (WWAN Data Only) 5G (North America, Rest of World)
Global LTE (North America, Rest of World)
3G, 2G (Rest of World)
North America 5G, LTE: AT&T and Verizon
Note: Actual band support may vary by country or carrier, contact Zebra Tech Support for more details.
GPS (ET45 Only)
GNSS supports GPS, Galileo, Beidou, Glonass.
Dual Band (L1+L5)

NFC
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation,Contactless Payment Support, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK

Wireless LAN

Data Rates

5 GHz: 802.11a/n/ac/ax – 20 MHz, 40 MHz, 80 MHz
– up to 1201 Mbps

2.4 GHz: 802.11b/g/n/ax – 20 MHz – up to 286.8 Mbps

Operating Channels
Channel 1-13 (2412-2472 MHz):
1,2,3,4,5,6,7,8,9,10,11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52,
56,60,64,100,104,108,112,116,120,124,128,132,136,1
40,144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz

Actual operating channels/frequencies and
bandwidths depend upon regulatory rules and
certification agency

Security and
Encryption

WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP,
and AES); WPA3 Personal (SAE); WPA/WPA2
Enterprise (TKIP and AES); WPA3 Enterprise (AES)
— EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS,
PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP
and EAP-PWD; WPA3 Enterprise 192-bit mode
(GCMP256) – EAP-TLS; Enhanced Open (OWE)

Certifications
Wi-Fi Alliance Certifications:
Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 ; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; Wi-Fi Direct

Fast Roam PMKID caching; 802.11r (Over-the-Air); OKC
Wireless PAN

Bluetooth

Bluetooth v5.1 Class 2, Bluetooth Low Energy (BLE)

*Specifications are subject to change without notice
