Product Information

Overview

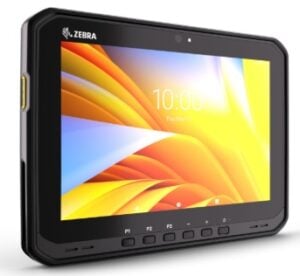

Designed for tough indoor settings, such as warehouses and manufacturing plants-including the freezer. Perfect for forklift and other material handling vehicle mounting with the innovative vehicle dock.

Specifications

Physical Characteristics

Dimensions

10.8 in. W x 7.8 in. L x 0.7 in. H
275 mm W x 199 mm L x 18.3 mm H

Weight 2.3 lbs/1,074 g
Display 10.1 in. WUXGA (1920 x 1200)—1,000 nits; optically bonded to touchpanel
Touchpanel Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); Corning™ Gorilla™ Glass; Water droplet rejection; fingerprint resistant anti-smudge coating
Expansion Slot User accessible MicroSD card; supports up to 2 TB
Connectivity 2 x USB 3.1 Type A Ports; 1 x USB 3.1 Type C Port (with DisplayPort 1.2 support)
Interface Ports and Expansion
Docking connector (charge and data); Keyboard
connector; 1 x USB 2.0 (back I/O – host only)

Notifications Audible tone; 2x multi-color LEDs
Audio Stereo speakers and two microphones; audio headset supported through USB port or Bluetooth; speaker/microphone support
Buttons Power; Scan; Up/Down (volume or brightness); three programmable keys
External Scanner Support HID via USB and Bluetooth™; SSI via USB and Bluetooth for DS/LI 36XX, RS5100 and RS6100
Performance Characteristics

CPU Qualcomm™ 6490 octa-core; 2.7 GHz
Operating System Android; for supported Android versions, visit:
www.zebra.com/android-versions
Memory 8 GB RAM/128 GB UFS Flash
User Environment

Operating Temp.
Standard battery: -4° F to 131° F/-20° C to 55°
Extended battery: -22° F to 131° F/-30° C to 55° C
No-battery configurations: -22° F to 140° F/-30° C to 60° C

Storage Temp. -40° F to 158° F/-40° C to 70° C
Humidity 5% to 95% non-condensing (standard); 5% to 95% condensing (freezer version with heated touch screen)
Drop Specifications 5 ft./1.5 m drop to concrete exceeds MIL-STD-810H
Sealing IP66 per IEC 60529
Vibration MIL-STD-810H Method 514.8 Operating, MIL-STD-810H Method 514.8 E-1 Minimum Integrity 7.7 Grms non-operating
Thermal Shock -40° F to 158° F/-40° C to 70° C
Electrostatic Discharge ± 15kV air discharge; ± 8 kV contact; ± 8 kV indirect
Salt Fog 48 hour of 5% solution at 95° F/35° C
Solar Radiation EN/IEC 60068-2-5 solar radiation spectral energy distribution; 1120 W/m2 at display surface; environmental temperature: 104° F/40° C; irradiation duration: 24 hours
Impact Steel ball (130 g) dropped from 75 cm height
Hazardous Location Certification Class 1 Division 2
Power

Charging Through USB Type-C (USB PD3.0 compatible) port or optional dock
Battery
Standard capacity: 8,920 mAh
Extended capacity: 17,840 mAh
Hot Swap battery mode

Super Capacitor No-battery configurations: 5-minutes of operation3
Battery Run Time Standard battery: 10 hours indoor (WLAN on, 50% backlight); Extended battery: 20 hours indoor (WLAN on, 50% backlight)3
Battery Charge Time
Standard battery: 2.5 hrs from 4% to 80% with 45 W power supply; Extended battery:
5.5 hrs from 4% to 80% with 45 W power supply

Sensors

Ambient Light Sensor Automatically adjusts display brightness
Magnetometer eCompass
Motion Sensor 3-axis gyroscope; 3-axis accelerometer
Humidity Sensor Control input for display heating
Data Capture

Optional Scanner SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology
Rear Camera 16 MP autofocus; flash LED generates balanced white light
Front Camera 8 MP; mechanical privacy shade
Camera Scanning 1D/2D barcodes; optional OCR for documents, license plates, VINs and more

Wireless LAN

Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2×2 MU-MIMO; Wi-Fi 6E (802.11ax); Wi-Fi™ certified; Wi-Fi™ 6E Certified; Dual Band Simultaneous; IPv4, IPv6

Data Rates 6 GHz: 802.11ax – 20 MHz, 40 MHz, 80 MHz,
160 MHz – up to 2402 Mbps; 5 GHz: 802.11a/n/ac/ax – 20 MHz, 40 MHz, 80 MHz, 160 MHz – up to 2402 Mbps; 2.4 GHz: 802.11b/g/n/ax – 20 MHz – up to 286.8 Mbps
Operating Channels
Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20/40/80/160 MHz;
Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.

Security and Encryption
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES)—EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit mode
(GCMP256) – EAP-TLS; Enhanced Open (OWE)

Fast Roam PMKID caching; 802.11r (Over-the-Air); OKC
Certifications
Wi-Fi Alliance Certifications
Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; Wi-Fi Direct

Wireless WAN (ET65 only)

SIM Slots

1 x eSIM, 1 x Nano SIM
Frequency Bands
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/
41/48/66/71/77/78
4G: B1/2/3/4/5/7/8/12/13/14/17/20/25/26/28/29/30/38/39/40/
41/42/43/46/48/66/71
3G: B1/2/4/5/8
Note: Actual band support may vary by country or carrier, contact Zebra Tech Support for more details.

LTE/5G Private Networking Supported
GNSS GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS—concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA
Wireless PAN

Bluetooth

Bluetooth v5.2 Class 1, Bluetooth Low Energy (BLE)
NFC NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0,Apple VAS and Google Smart Tap certified, VAS Library/SDK
Security Features

FIPS 140-2 Validated (ISO 19790) and Common Criteria certified (ISO 15408);
FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request; supports Secure Boot and Verified Boot
Peripherals and Accessories

Accessories include: vehicle dock; keyboard; CAC reader; RFID reader; 2-slot battery charger; stylus; carrying accessories—handstrap, kickstand, shoulder strap and handle

*Specifications are subject to change without notice
